HT-33a/b  "HomeBrew"

I acquired this amplifier in the Fall of 2004.  When I first saw the pix I suspected that it was a Hallicrafters HT-33 that had been re-packaged.  It turned out that it was.   The RF deck had been saved intact, but almost all the power supply components were not original Hallicrafters.  The owner had made a very nice cabinet for the RF deck, assembled almost totally with "pop-rivets."  The power supply was on a galvanized sheet metal chassis that was a bit light for the weight of the HV transformer and other components, again assembled with pop-rivets.  A very nicely formed and welded cover had been made of heavy gage perforated stainless steel.  It may have been an HT-33A, and upgraded to an HT-33B.

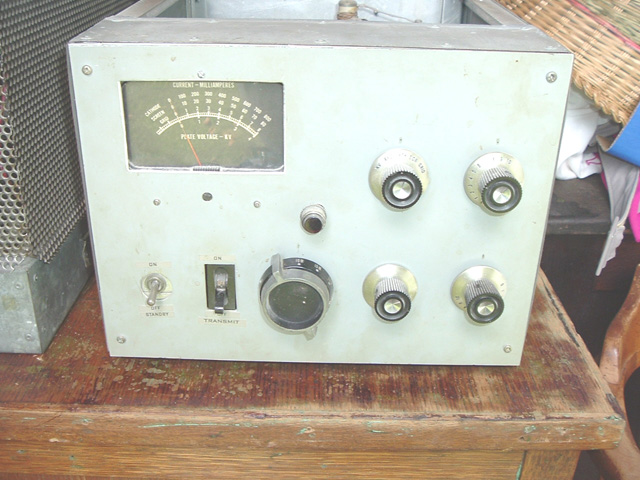

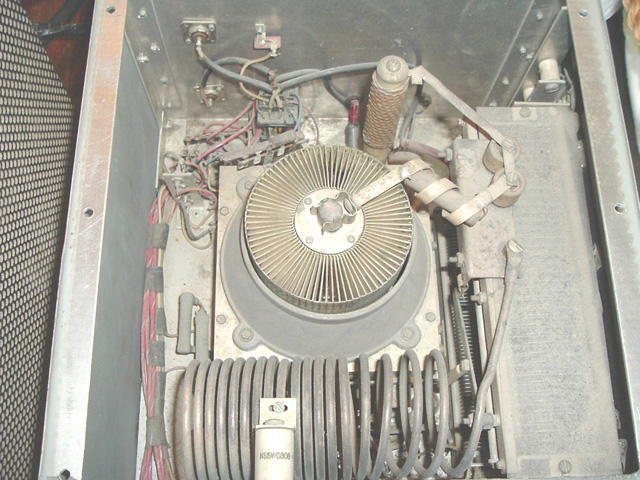

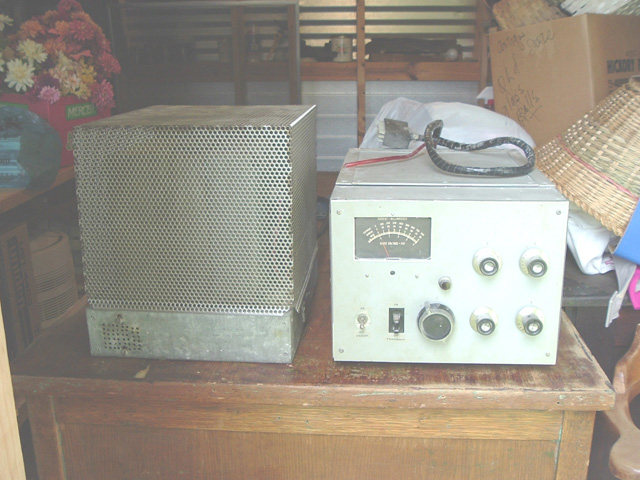

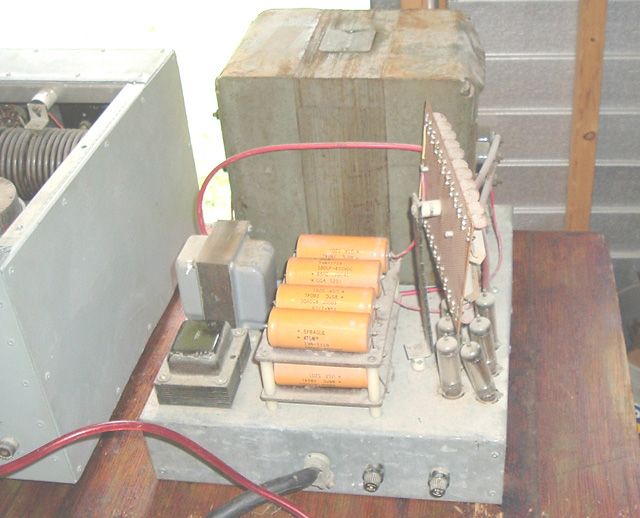

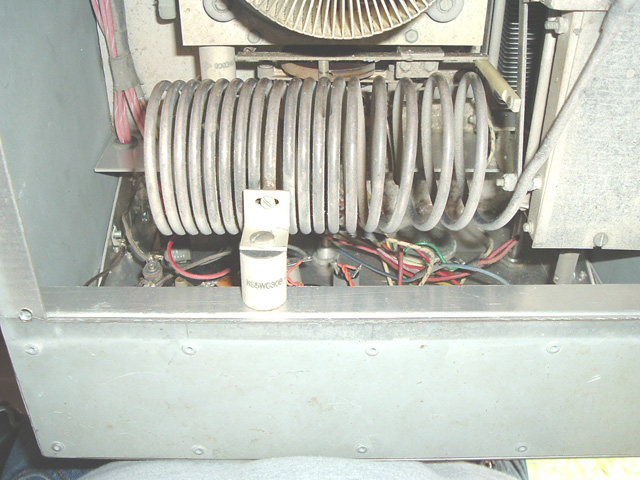

Pix "as found"

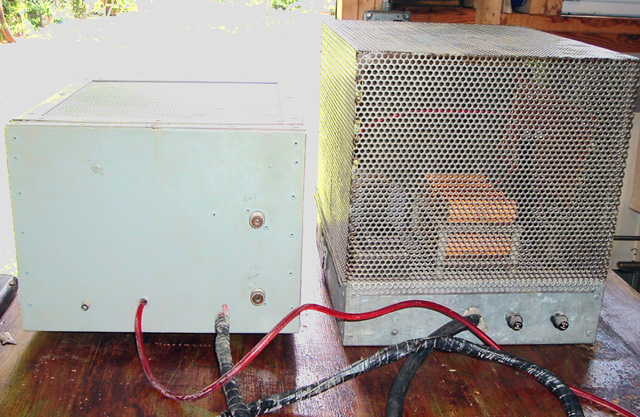

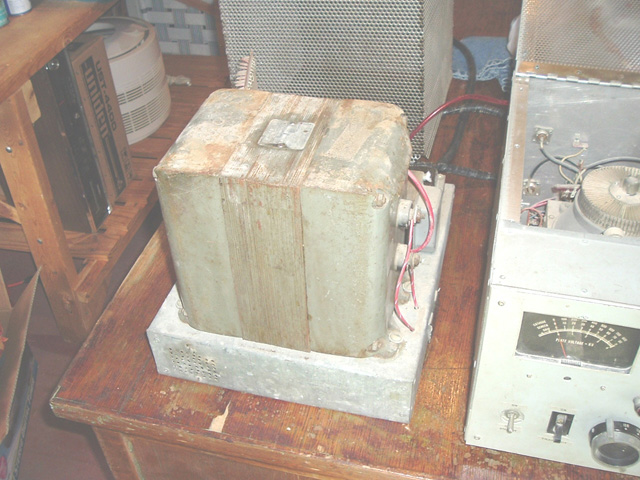

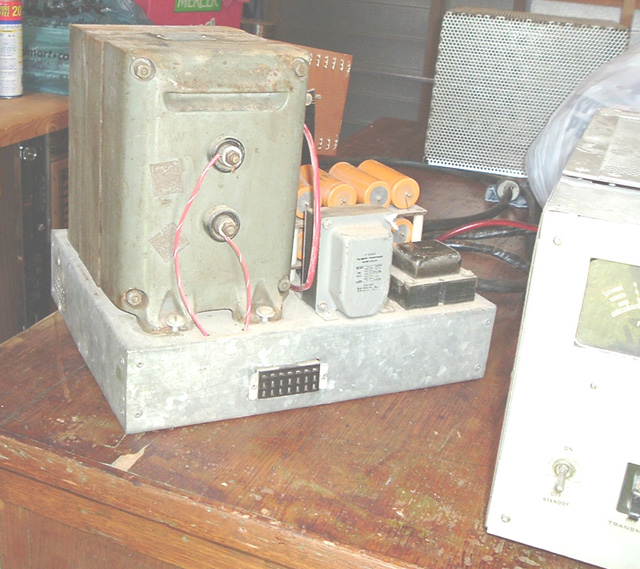

asfound1r.jpg (432695 bytes) asfound4r.jpg (424845 bytes) asfound5r.jpg (455506 bytes) asfound8r.jpg (453027 bytes) asfound9r.jpg (593849 bytes) asfound2r.jpg (494221 bytes) asfound6r.jpg (400294 bytes)  asfound91r.jpg (457186 bytes)

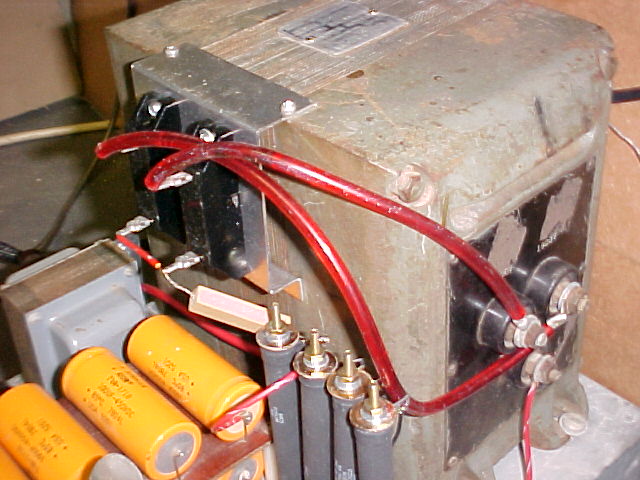

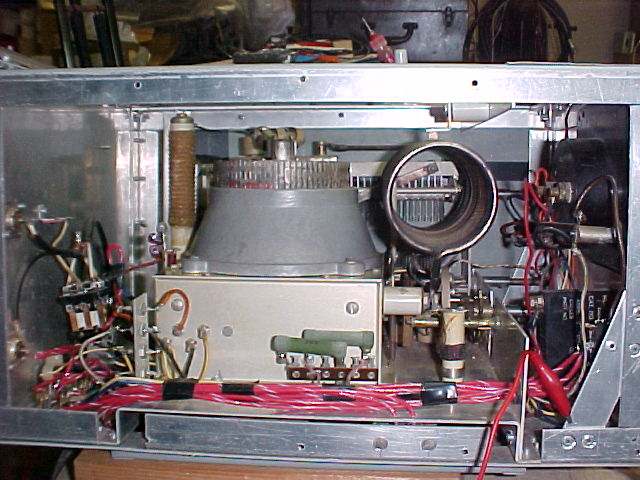

pix after cleanup and rework of the power supply.

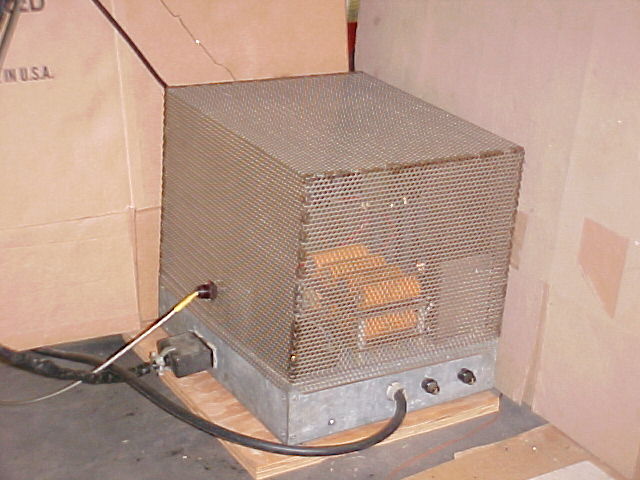

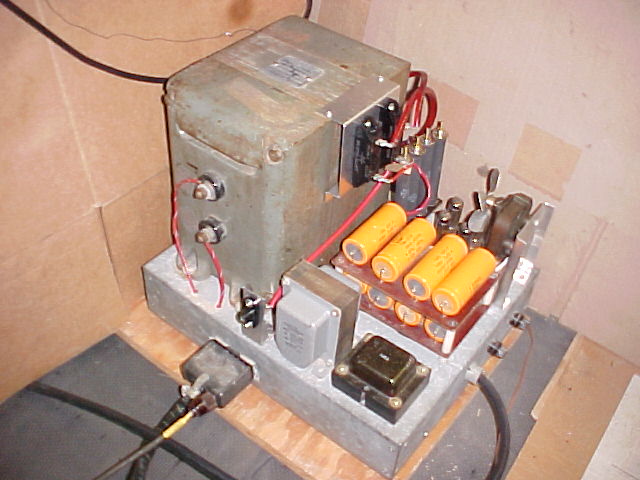

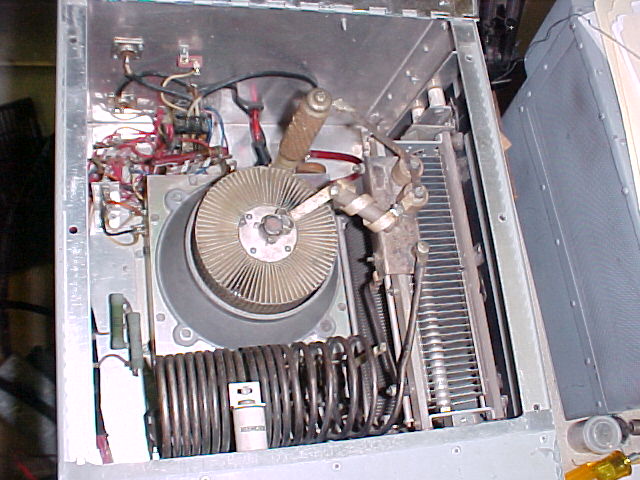

 cleand1.JPG (83165 bytes) cleand2.JPG (79134 bytes) PSaftr1.JPG (56950 bytes) PSaftr2.JPG (57353 bytes) PSaftr7.JPG (71678 bytes) PSaftr4.JPG (70218 bytes)

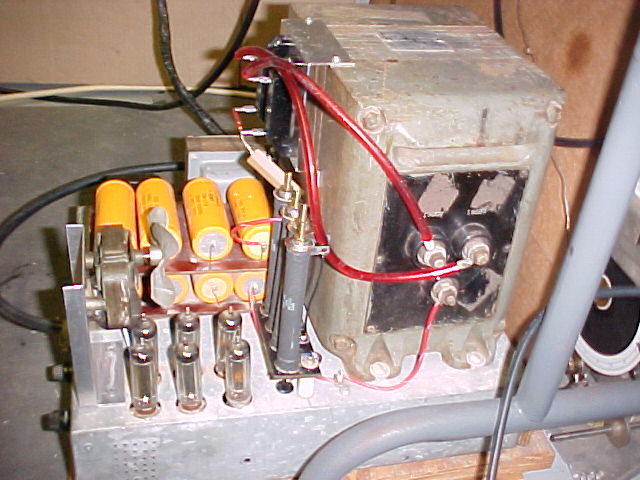

The 4 10kohm 50watt dropping resistors for the screen voltage had been located under the chassis, with a fan, but the excessive heat in the enclosed space had driven 2 of the resistors to failure.  New ones were purchased, and they were placed above the chassis, with the fan on a new bracket.  The rectifiers were a string of 11 silicon diodes per leg, with equalizing resistors and capacitors, as was common some 15-20 years ago.  New 2 HV diode modules were purchased from K2AW's "Silicon Alley", and a bracket was fastened to the transformer with 6-32 hardware into tapped holes in the cast iron end bell.

It is now, in Jan. 2005, operating well on the air,  presently driven by a Hammarlund HX-500 transmitter.

to see the HX-500

Much later, I decided that the knobs should have more descriptive labeling, and added some decals.  I have been using it with a KWM-2A, often as net control on the Vintage Sideband Net, on 20 meters.

I swapped this amp off in 2009
