STANCOR  ST-202-A

Produced in 1947 in response to demand for a bigger transmitter, with CW only.  Previous Stancor transmitters were small, up to 60w, some had AM capability.

This one has a tube lineup of  6V6, 6L6, 811 final, plus 2 rectifiers. Puts out over 100w on 40 and 80, the only bands I have tried.   I now have a 20m coil, will try soon.

click on the thumbnails to see the big picture.

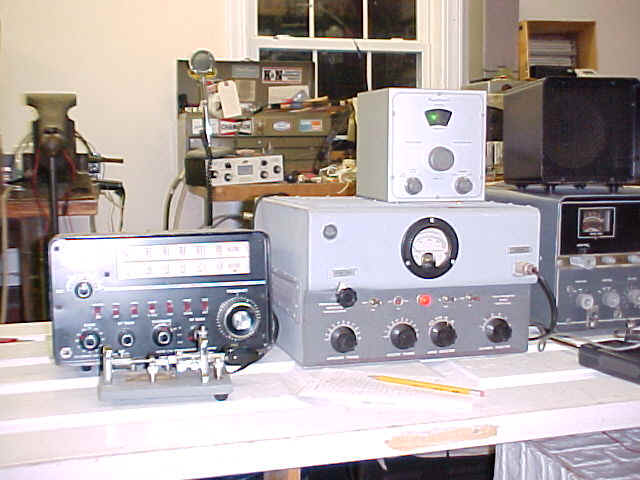

Operating table in the shop, with Drake 2-B & Heath VF-1
I've used this particular setup several times, in the "Classic Radio Exchange" and for general QSO's, mostly on 40 meters.  It always gets good signal reports.

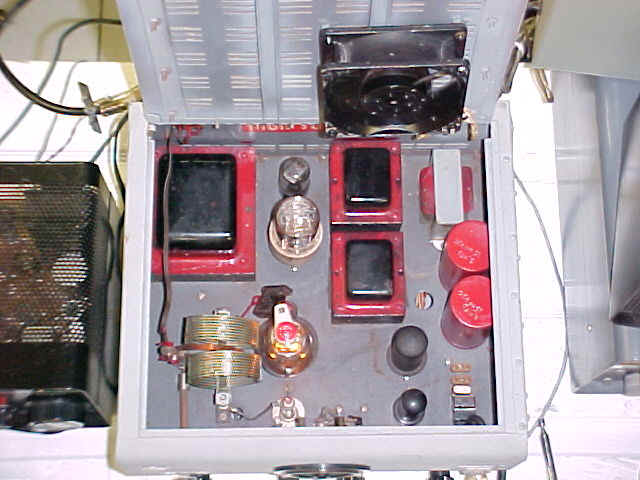

The previous owner liked to paint things red

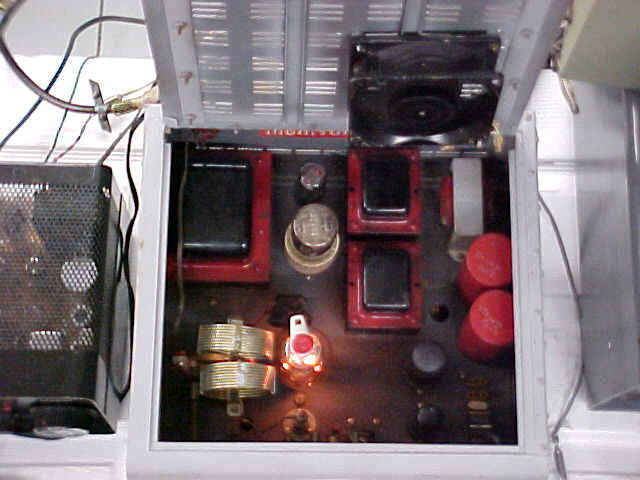

Keep them tubes glowing

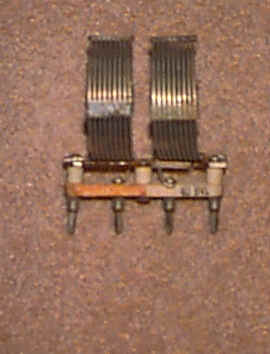

B & W  40 BVL coil

Download the ST-202A manual

comments -   please contact Al, W8UT  anchor@ec.rr.com
